2S LiFePO4 Battery BMS Board 6.4V 15A BMS Protect Board For Power Storage System

Place of Origin : Guangdong, China

Brand Name : ENERKEY

Model Number : JW-2S15A-380

Packaging Details : Carton

Supply Ability : 50000 Piece/Pieces per Month

MOQ : 2 pieces

Price : $6.90/pieces 2-99 pieces

Certification : ISO9001/ROHS/CE

Application : E-bike,toy's battery pack, Power Bank,Power tool

Type : PCM

Features : 2S Battery 15A Current

Mounting Type : built-in

Size / Dimension : L55*W20*T2.8mm

Description : 18650 cell with bms

Base Material : FR-4

Board Thickness : 1.5mm

Surface Finishing : HASL Lead Free

Solder mask color : Green.White.Black.Red.Yellow.Blue.Purple.Matte Green. Matte Black

Voltage : 6.4

Current : 15A

Suitable for battery string : 2S

Battery type : LiFePO4 Battery

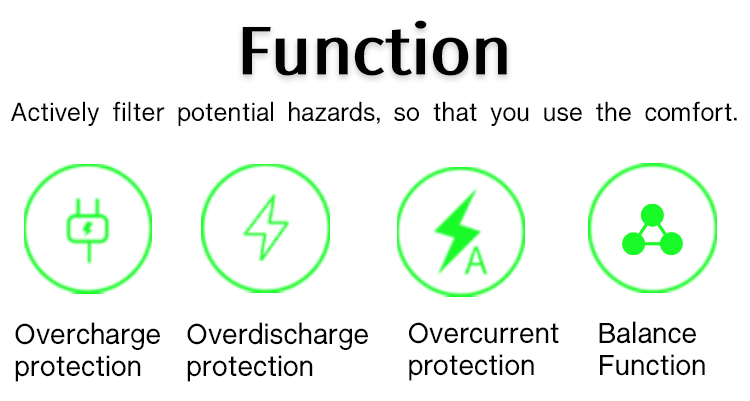

Protection function : Overcharge ,Overdischarge ,Overcurrent ,Short-circuit

Contact Now

Enerkey 2S 6.4V 15A Battery BMS Protect Board LiFePO4 Battery BMS Board For Power storage system
Product Description
Electric Parameter
PCM Specifications For 7.4V(2S)Li-ion Battery Packs
Model:JW-B2S8A-014
NO.
Project
Min.
Typ.
Max.
Unit
1
voltage
Charging voltage
7.2
V
Balance voltage for single cell
3.55
3.6
/3.65
V
2
Current
Balance current for single cell
31
36
41
mA
Current consumption
20
uA
Maximal continuous charging current
20
A
Maximal continuous discharging current
20
A
3
Over charge protection
Overcharge detection voltage for single cell
3.875
3.9
3.925
A
Overcharge detection delay time
0.5
1.5
S
Overcharge release voltage for single cell
3.40
3.45
3.50
V
4
Over discharge protection
Overdischarge detection voltage for single cell
1.95
2.00
2.05
V
Overdischarge detection delay time
50
150
mS
Overdischarge release voltage for single cell
2.4
2.5
2.6
V
5
Overcurrent protection
Over current detection voltage
175
200
215
mV
Over current detection current
65
75
85
A
Detection delay time
5
15
mS
Release condition
Cut load
6
Short protection
Detection condition
Exterior short circuit
Detection delay time
200
500
μS
Release condition
Cut load
7
Resistance
Protection circuitry (MOSFET)
50
mΩ
8
Temperature
Operating Temperature Range
-40
85
℃
Storage Temperature Range
-40
125
℃

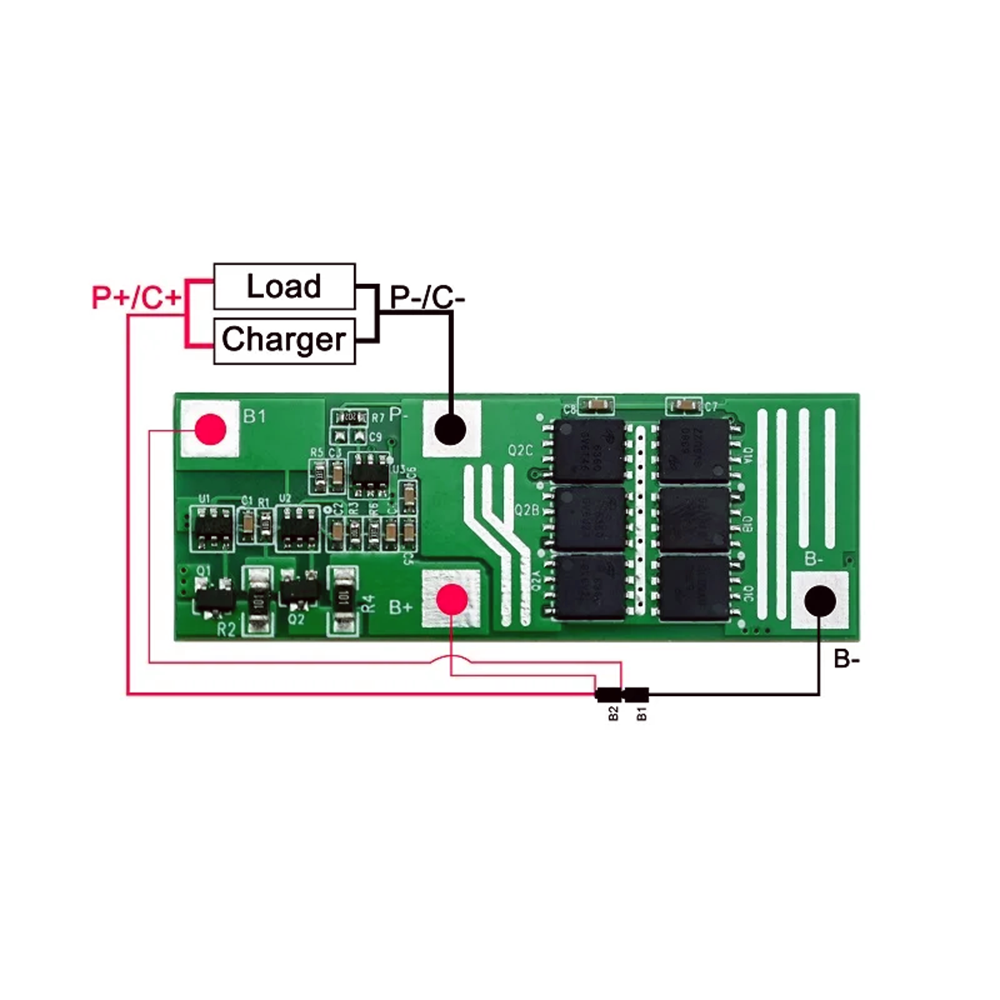

Product Use Tutorial

A protection board and a battery management system (BMS) are both used to protect lithium-ion batteries, but they serve different functions.

A protection board is a small electronic circuit that is typically placed between the battery and the device it powers. It is designed to prevent overcharging, over-discharging, and short circuits.

Protection boards are relatively simple and inexpensive, and they are often used in applications where only basic battery protection is needed.

2S LiFePO4 Battery BMS Board 6.4V 15A BMS Protect Board For Power Storage System
2S LiFePO4 Battery BMS Board 6.4V 15A BMS Protect Board For Power Storage System
2S LiFePO4 Battery BMS Board 6.4V 15A BMS Protect Board For Power Storage System
2S LiFePO4 Battery BMS Board 6.4V 15A BMS Protect Board For Power Storage System
2S LiFePO4 Battery BMS Board 6.4V 15A BMS Protect Board For Power Storage System
FAQ
2S LiFePO4 Battery BMS Board 6.4V 15A BMS Protect Board For Power Storage System
